i230 Irons by Ping Canada
Hit your yardages precisely with this Tour-proven, players-style iron that delivers consistent, predictable distance control and tight dispersion. An activated elastomer insert creates discretionary weight to lower the CG for more distance while enhancing feel and sound in conjunction with a multi-material badge. A more rounded lead edge ensures smooth turf interaction for clean strikes. Available in 3-9, PW, UW.

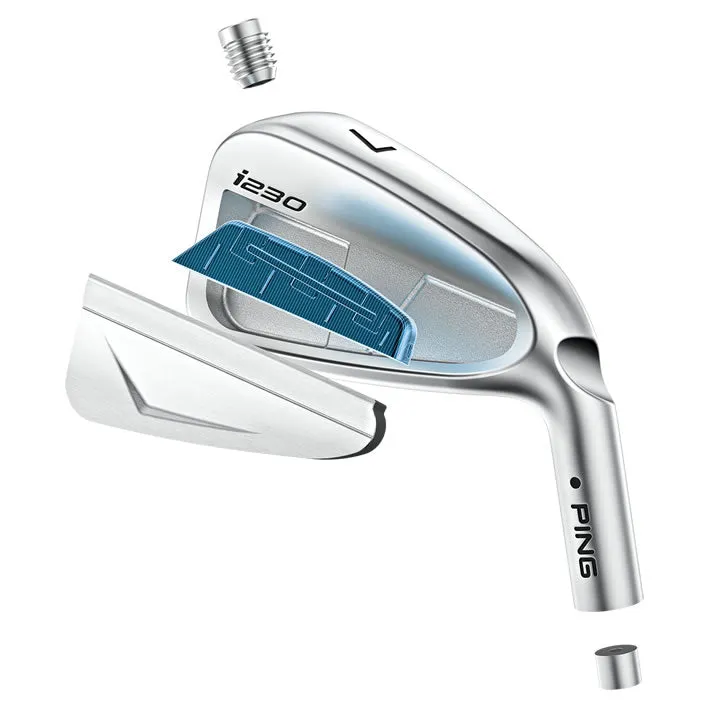

Premium Feel, Sound
A consistently more pleasing feel and sound in every iron result from a four-layer cavity badge that damps undesirable frequencies, working in concert with a soft elastomer insert behind the badge in the 431 stainless steel head.

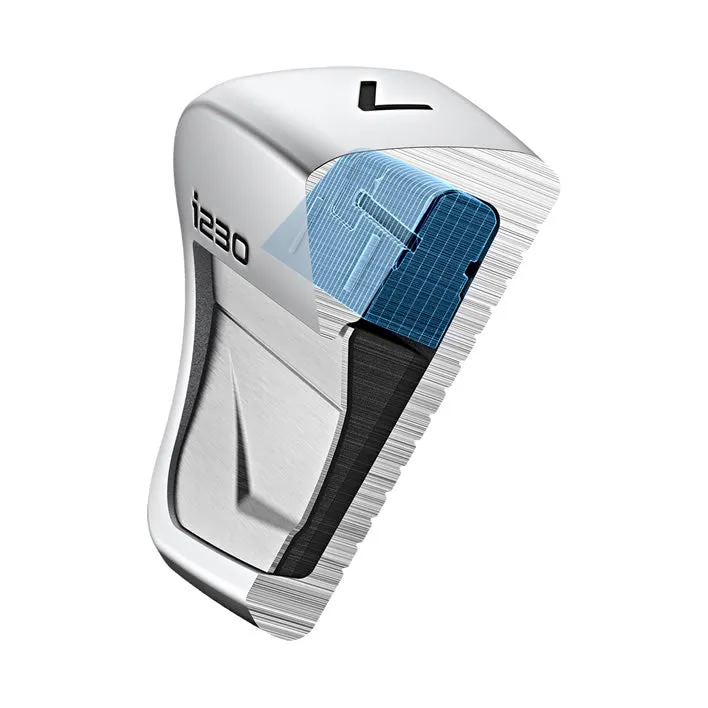

Low CG, Higher MOI
Activated elastomer saves significant weight that is re-allocated to achieve a low CG for more distance and (with tungsten toe and tip weights) increase forgiveness. The elastomer reinforces the face, providing more consistent bending and energy transfer to generate a higher, stronger ball flight.

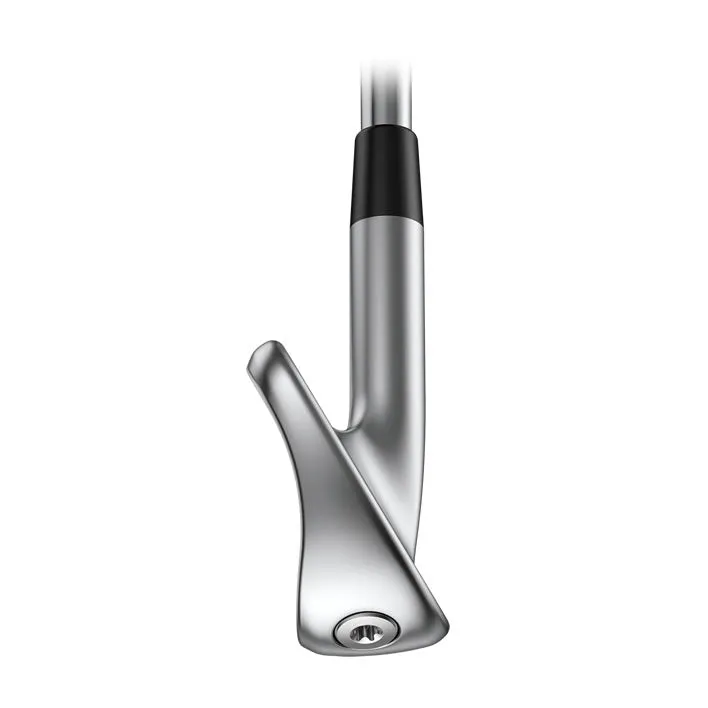

Rounded Lead Edge
The sole design is similar to the tour-proven i210, with a more rounded lead edge and ample bounce to promote smooth turf interaction for clean, solid ball striking.

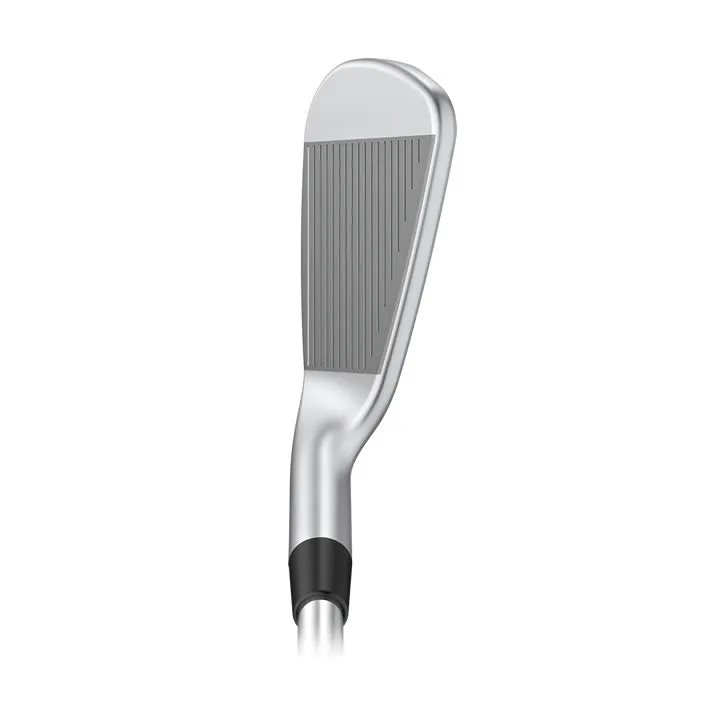

MicroMax Grooves
Precision-milled MicroMax grooves deliver consistent launch and spin for accuracy in the long irons and greater control in the short irons and wedges, especially in wet conditions where the grooves and hydropearl 2.0 chrome finish ensure low launch angles with high spin.
Compact Long Irons
For consistent clubface delivery and greater accuracy in the long irons, the 3-5 irons are slightly more compact than i210, while the mid and short irons are similar blade lengths, creating a tour-preferred look across the set. Pictured above are the 4-iron (left), and 7-iron.
Consistent Gapping
The i230 delivers predictable and repeatable distance with the control and playability to hit precise yardages, ensuring the gapping consistency expected of a players-style iron.
| CLUB | LENGTH | LOFT | POWER SPEC LOFT | RETRO SPEC LOFT | LIE ANGLE | OFFSET | BOUNCE | SWINGWEIGHT |
|---|---|---|---|---|---|---|---|---|
| 3-iron | 39" | 19.0°degrees | 19.0°degrees | 21.0°degrees | 59.0°degrees | 0.20"Ping.Clubs.Specs.Offset.Units | 5.0°degrees | D1 |
| 4-iron | 38 1/2"1/2 | 22.5°degrees | 22.0°degrees | 24.5°degrees | 59.8°degrees | 0.17"Ping.Clubs.Specs.Offset.Units | 6.0°degrees | D1 |
| 5-iron | 38" | 26.0°degrees | 25.0°degrees | 28.0°degrees | 60.5°degrees | 0.14"Ping.Clubs.Specs.Offset.Units | 7.0°degrees | D1 |
| 6-iron | 37 1/2"1/2 | 29.5°degrees | 28.0°degrees | 31.5°degrees | 61.3°degrees | 0.12"Ping.Clubs.Specs.Offset.Units | 8.0°degrees | D1 |
| 7-iron | 37" | 33.0°degrees | 31.5°degrees | 35.0°degrees | 62.0°degrees | 0.09"Ping.Clubs.Specs.Offset.Units | 9.0°degrees | D1 |
| 8-iron | 36 1/2"1/2 | 37.0°degrees | 35.5°degrees | 39.0°degrees | 62.8°degrees | 0.07"Ping.Clubs.Specs.Offset.Units | 10.5°degrees | D1 |
| 9-iron | 36" | 41.0°degrees | 40.0°degrees | 43.0°degrees | 63.5°degrees | 0.05"Ping.Clubs.Specs.Offset.Units | 12.0°degrees | D1.5 |
| PW | 35 1/2"1/2 | 45.0°degrees | 44.5°degrees | 47.0°degrees | 64.1°degrees | 0.03"Ping.Clubs.Specs.Offset.Units | 13.0°degrees | D2 |
| UW | 35 1/2"1/2 | 50.0°degrees | 49.5°degrees | 52.0°degrees | 64.1°degrees | 0.02"Ping.Clubs.Specs.Offset.Units | 13.0°degrees | D2 |
NOTES
- These are design specifications that may vary due to manufacturing tolerances.
- Lie angle is based on Black Color Code at standard length.
- Power Spec Loft is a fitting option for players looking to boost their iron distance or decrease spin to hit a desired trajectory window. This custom-designed loft configuration delivers a calculated power boost without sacrificing the integrity of the club’s design.
- Retro Spec Loft is a fitting option if you’re less concerned with overall distance and more with precision and a higher trajectory for more stopping power. This loft configuration yields functional distance gaps for utilizing a 3-wedge setup or a more classic loft spec.
- Club bounce angles will vary slightly if ordered with non-standard loft specs.
- Standard swingweights for graphite-shafted clubs are 2 to 3 points lighter than shown, depending on shaft flex.
- Achievable swingweights depend on shaft, length and grip combinations.
- Available in left- and right-handed models.
